Understanding the CNC Machining Process Flow

Introduction

In the realm of modern manufacturing, Computer Numerical Control (CNC) machining has revolutionized the way complex parts are fabricated. From aerospace to automotive industries, CNC machining plays a crucial role in producing high-precision components with efficiency and accuracy. To truly grasp the essence of CNC machining, it\’s essential to delve into its process flow, which we\’ll comprehensively explore in this article.

What is CNC Machining?

Computer Numerical Control (CNC) machining is a manufacturing process that utilizes pre-programmed computer software to control the movement of machining tools. These tools remove material from a workpiece to create intricate and precise components. Unlike traditional manual machining, CNC machining offers greater precision, consistency, and speed.

The CNC Machining Process Flow

1. Designing the CAD Model

The CNC machining process starts with a Computer-Aided Design (CAD) model. Engineers and designers use CAD software to create a detailed digital representation of the desired part. This step is crucial as any flaws or inaccuracies in the CAD model will directly impact the final product.

2. Converting CAD to CNC Code

Once the CAD model is finalized, it\’s translated into CNC code using Computer-Aided Manufacturing (CAM) software. The CAM software generates instructions that guide the CNC machine throughout the machining process. These instructions include toolpaths, cutting speeds, feed rates, and other essential parameters.

3. CNC Machine Setup

With the CNC code ready, the next step involves setting up the CNC machine. This setup includes securing the workpiece to the machine\’s worktable, loading the required cutting tools into the tool holder, and ensuring proper alignment. Additionally, the CNC operator checks and calibrates the machine to ensure optimal performance.

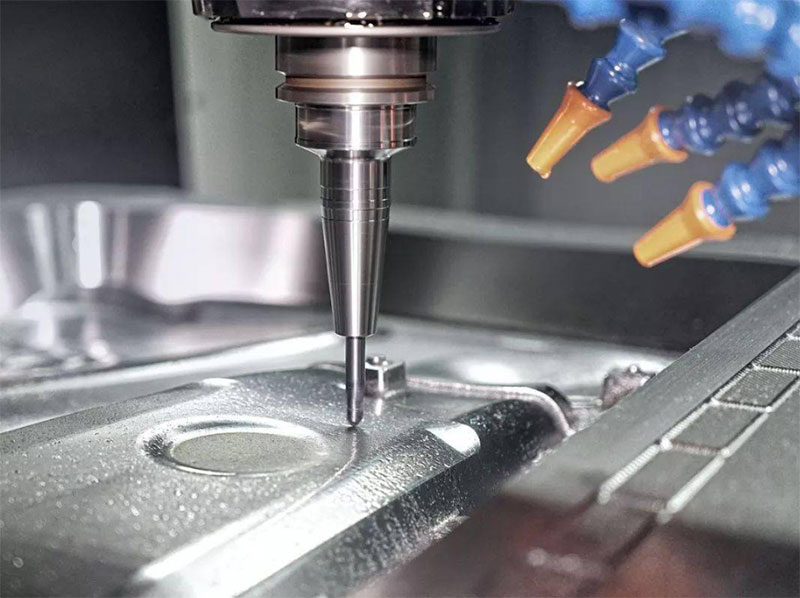

4. Material Removal

Once the setup is complete, the actual machining process begins. The CNC machine follows the instructions from the CNC code to cut and shape the workpiece. Different cutting tools are used for various operations, such as milling, turning, drilling, and grinding. The CNC machine continuously removes material until the final part\’s dimensions are achieved.

5. Quality Control

Quality control is an integral part of the CNC machining process flow. During and after machining, the produced part undergoes rigorous inspections to verify its accuracy and adherence to the CAD model\’s specifications. Any deviations or defects are identified, and necessary adjustments are made to achieve the desired quality.

6. Finishing Operations

After the machining process, the part may undergo additional finishing operations, such as polishing, deburring, or coating, depending on the application\’s requirements. These finishing touches enhance the part\’s surface finish, durability, and aesthetics.

Advantages of CNC Machining

CNC machining offers several advantages over traditional manual machining:

1. Precision and Accuracy

CNC machines can consistently achieve high levels of precision and accuracy, resulting in superior quality parts.

2. Efficiency and Productivity

Automated CNC processes reduce human errors and enable continuous production, leading to increased efficiency and productivity.

3. Flexibility and Complexity

CNC machines can manufacture intricate and complex geometries that are often challenging or impossible with manual methods.

4. Reproducibility

CNC machining ensures the exact replication of parts, making it ideal for mass production.

Conclusion

Computer Numerical Control (CNC) machining is a cutting-edge technology that has transformed the manufacturing landscape. Understanding the CNC machining process flow is essential to grasp its significance in creating intricate and precise components with efficiency and accuracy. From CAD design to finishing operations, each step plays a crucial role in delivering high-quality parts that drive innovation in various industries.
