Features of 5-axis machining center

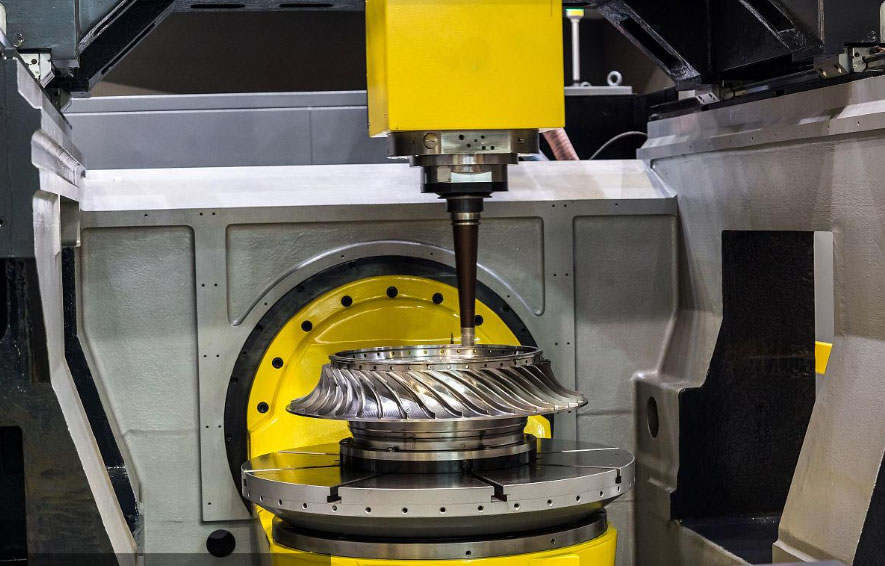

A 5-axis machining center is an advanced CNC (Computer Numerical Control) machine tool used in manufacturing and machining processes. It offers greater flexibility and precision compared to traditional 3-axis machining centers. Here are the key features of a 5-axis machining center:

1. Multi-Axis Movement: A 5-axis machining center has the ability to move its cutting tool along five different axes: X, Y, Z, as well as two rotary axes typically referred to as A and B. This enables complex and contoured machining from various angles without requiring repositioning of the workpiece.
2. Increased Precision: The additional axes of movement allow for intricate and precise machining of complex geometries. This is particularly useful for producing parts with intricate curves, undercuts, and complex shapes.
3. Reduced Setups: Traditional machining centers often require repositioning and multiple setups to achieve various angles and contours. With a 5-axis machine, many operations can be completed in a single setup, reducing the need for extensive repositioning and setup time.
4. Improved Surface Finish: The multi-axis movement of a 5-axis machining center allows for smoother tool paths and better control over cutting angles. This results in improved surface finishes on the machined parts, reducing the need for additional finishing processes.
5. Shorter Production Time: The ability to machine complex features in a single setup reduces production time significantly. This is especially valuable for industries with tight production schedules and high demand.
6. Enhanced Tool Life: 5-axis machining enables better tool engagement with the workpiece, distributing wear more evenly across the cutting edges. This can extend the life of cutting tools, reducing tool changeovers and associated downtime.
7. Complex Contouring: With 5-axis capabilities, machining centers can execute intricate contouring and sculpting operations that would be challenging or impossible with conventional 3-axis machines.
8. Machining Difficult Materials: The flexibility of a 5-axis machine allows for efficient machining of difficult-to-cut materials such as titanium, hardened steels, and exotic alloys, which might pose challenges for less versatile machines.
9. High Precision in Tight Spaces: The rotational axes allow the tool to access tight and difficult-to-reach spaces that might be unreachable with traditional machining methods.
10. Reduced Scrap and Rework: The accuracy and precision of 5-axis machining contribute to fewer errors and less scrap material, minimizing the need for rework and enhancing overall manufacturing efficiency.

In summary, a 5-axis machining center offers manufacturers the ability to produce intricate and complex parts with high precision, reduced setup times, and increased efficiency. It\’s a crucial tool in industries ranging from aerospace and automotive to medical devices and mold-making.
